5052 Aluminum Coil
Alloy: AA5052
Temper:O, H12, H14, H16, H18, H22, H24, H26, H28
Thickness: 0.2 And Above
Width: 9.5-2000mm
Description
5052 Aluminum Coil DC / CC Alloy designation (For Reference)
Comparison of Alloy Designations for 5052 rolled aluminum sheet.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 5xxx Series | 5052 | 5052 | EN AW-5052 |
5xxx series roll aluminum sheet is commonly applied in many industries. It is of low density, high tensile strength and high ductility. 5052 rolled aluminum sheeting is lighter than other alloy with the same area.
5052 Aluminum Coil DC / CC Temper designation (For Reference)
| Temper | Definition |
| O | Annealed |
| H12 | Strain Hardened, 1/4 Hard |
| H14 | Strain Hardened, 1/2 Hard |
| H16 | Strain Hardened, 3/4 Hard |
| H18 | Strain Hardened, Full Hard |
| H22 | Strain Hardened and Partially Annealed, 1/4 Hard |
| H24 | Strain Hardened and Partially Annealed, 1/2 Hard |
| H26 | Strain Hardened and Partially Annealed, 3/4 Hard |
| H28 | Strain Hardened and Partially Annealed, Full Hard |
5052 Aluminum Coil DC / CC Chemical Compositing
Chemical Composition conforms to Chinese, American and European standard specification (For Reference)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.10 | – | 0.05 | 0.15 | remainder |
5xxx series aluminum sheet metal roll contains 3%-5% magnesium, so it is also called magaluma alloy. It is often appiled to manufacture fuel tankers of the planes. 5052 rolled aluminum sheet metal is widely used in the common industries, too.
5052 Aluminum Coil DC / CC Application
5052 roll aluminum sheet metal is very common material with many advantages. 5052 aluminum sheet metal rolls can do good forming performance and corrosion resistance, they are used in transportation, automobile, ship building, instrument and electrical enclosure, etc.
| Type | Application |
| Food Packaging | Beverage can end, can tap, cap stock, etc. |
| Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
| Transportation | Automobile parts, bus bodies, aviation and ship-building and air-cargo containers, etc. |
| Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
| Consumer Goods | Parasols and umbrellas, cooking utensils, and sports equipment, etc. |
| Other | Military, color coated aluminum coil |
5052 Aluminum Coil DC / CC Available Size Range
| Dimension | Range |
| Thickness | 0.3-6.0mm |
| Width | 30-1850mm |
* Surface Finish: Mill finish, unless otherwise specified
* Surface Protection: Paper interleaved, PE/PVC filming (if specified)

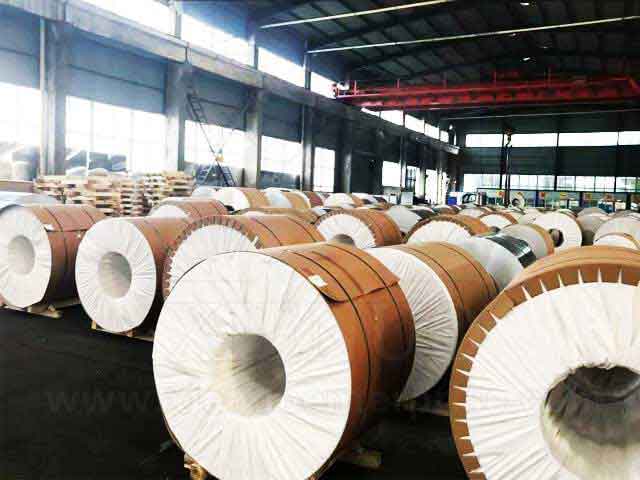

Production Equipment
Production capacity: Xienuo Enterprise has a total of 25 state-of-the-art cold rolling, cast rolling, hot continuous rolling, foil rolling and extrusion production lines, including 6 casting and rolling lines, 4 continuous casting and rolling lines, and 3 coating production lines. 2 anodizing production lines, and more than 300 sets of production equipment such as rewinding machines, rounding machines, and slitting machines.
It can achieve an annual production capacity of 100,000 tons of aluminum plates, 100,000 tons of aluminum coils, 80,000 tons of aluminum foils, 50,000 tons of aluminum circle discs, and 50,000 tons of other aluminum products.
Our Services
★Timely response: Timely response to your inquiry within 24 hours and provide solution.
★Competitive Price: Make the products competitive in your market.
★Free sample: Free sample are offered, trial order are accepted for quality evaluation.
★Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers’ needs.
★Fast delivery time: Within 3-30 days according to your quantity after receiving your advance payment.
★ Professional services: The main managers in different divisions of the company all have the senior or middle titles, they will provide you the corresponding professional services.
We are here for you!
