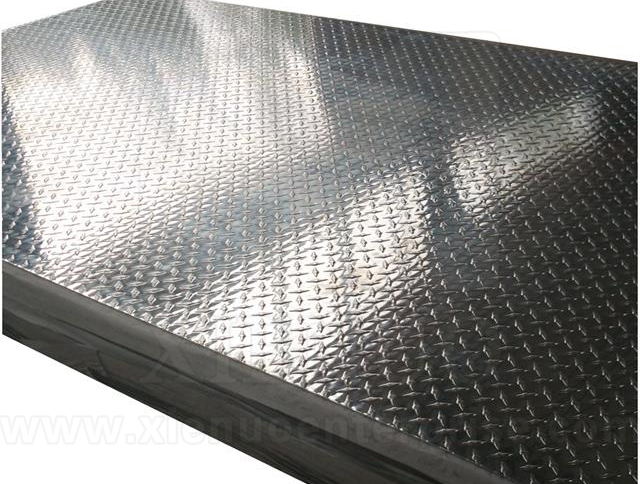

Aluminum Diamond Plate
Alloy: AA1050, AA1060, AA1100, AA3003, AA3004, AA3005, AA3104, AA3105, AA5005, AA5052, AA5754
Temper:O, H12, H14, H22, H24, H32, H34, H114, H194
Thickness: 0.2-5.0mm
Size: (L:900-8000mm)*(W:900-1550mm)
Description
Aluminium Diamond Plate Available Size Range:
The size of aluminum diamond sheets are customizable. Including the size of the aluminum diamond tread plate pattern.
| Dimension | Thickness | Width | Length |
| 1xxx | 1.0-5.0mm | 900-1550mm | 900-8000mm |
| 3xxx | 1.2-5.0mm | 900-1550mm | 900-8000mm |
| 5xxx | 1.5-5.0mm | 900-1550mm | 900-8000mm |
– Surface Finish: Bright finish, Mill finish
– Pattern Height: 1.0mm, +/-0.4mm
– Pattern Length: 33mm, +/-2.0mm
Aluminium Diamond Tread Plate Specification and Size :
– Standard Specification of aluminum diamond plate sheets: GB/T 3618, Base material conforms to GB/T 3880
| Alloy and Temper | ||
| Alloy | Temper | Remarks |
| 1xxxx: 1050, 1060, 1100 | O, H114, H194 | Temper H12, H14, H22, H24, H32 and H34, which are applied to base material are provided as per client’s request and mutually agreement. |
| 3xxx: 3003, 3004, 3005, 3104, 3105 | ||
| 5xxx: 5005, 5052, 5754 | O, H114 | |
Diamond Plate Temper designation (For Reference):
There are no specific temper of aluminium checker plate sheets. XieNuo Company can process our aluminium checker plate sheet according to the requirements of our clients.
| Temper | Definition |
| O | Annealed |
| H114 | H114 fabricated from Temper O |
| H194 | H194 fabricated from Temper H18 |
Diamond Tread Plate Alloy designation (For Reference):
Comparison of Alloy Designations for diamond plated aluminum sheets.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1050 | – | – |
| 1060 | 1060 | – | |
| 1100 | 1100 | – | |
| 3xxx Series | 3003 | 3003 | EN AW-3003 |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx Series | 5052 | 5052 | EN AW-5052 |
| – | 5754 | EN AW-5754 |
Aluminium Diamond Plate Chemical Compositing:
Chemical Composition conforms to Chinese, American and European standard specification (For Reference) of aluminium diamond plate sheet.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.05 | 0.03 | – | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | – | – | 0.10 | – | 0.05 | 0.15 | 99.0 | |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 | – | – | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3105 | 0.60 | 0.70 | 0.03 | 0.3-0.8 | 0.2-0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | – | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
Diamond Plate Application:
Aluminium diamond plate sheets are a highly cost modern material, it can be widely applied in flooring, wall panel, tool box, transportation and other architecture.
| Type | Applications |
| Vehicle | Van-type vehicle catwalk flooring, wood step of the bus or truck, train inspection hole lid, tank car, the car cold storage. |
| Ship | Orridor and bridges over the lid and floors, stairs, cabin deck, fish tank, gangway to the floating dock. |
| Architecture | Floors, stairs, shelves, such as gutter lid, the bicycle. |
| Factory | Bench floor and stairs, equipment/ plant machinery, such as ambulatory inspection. |
| Other | Deck ladder, ladder, showcase, carousel, temporary scaffolding, the structure of marine. |
